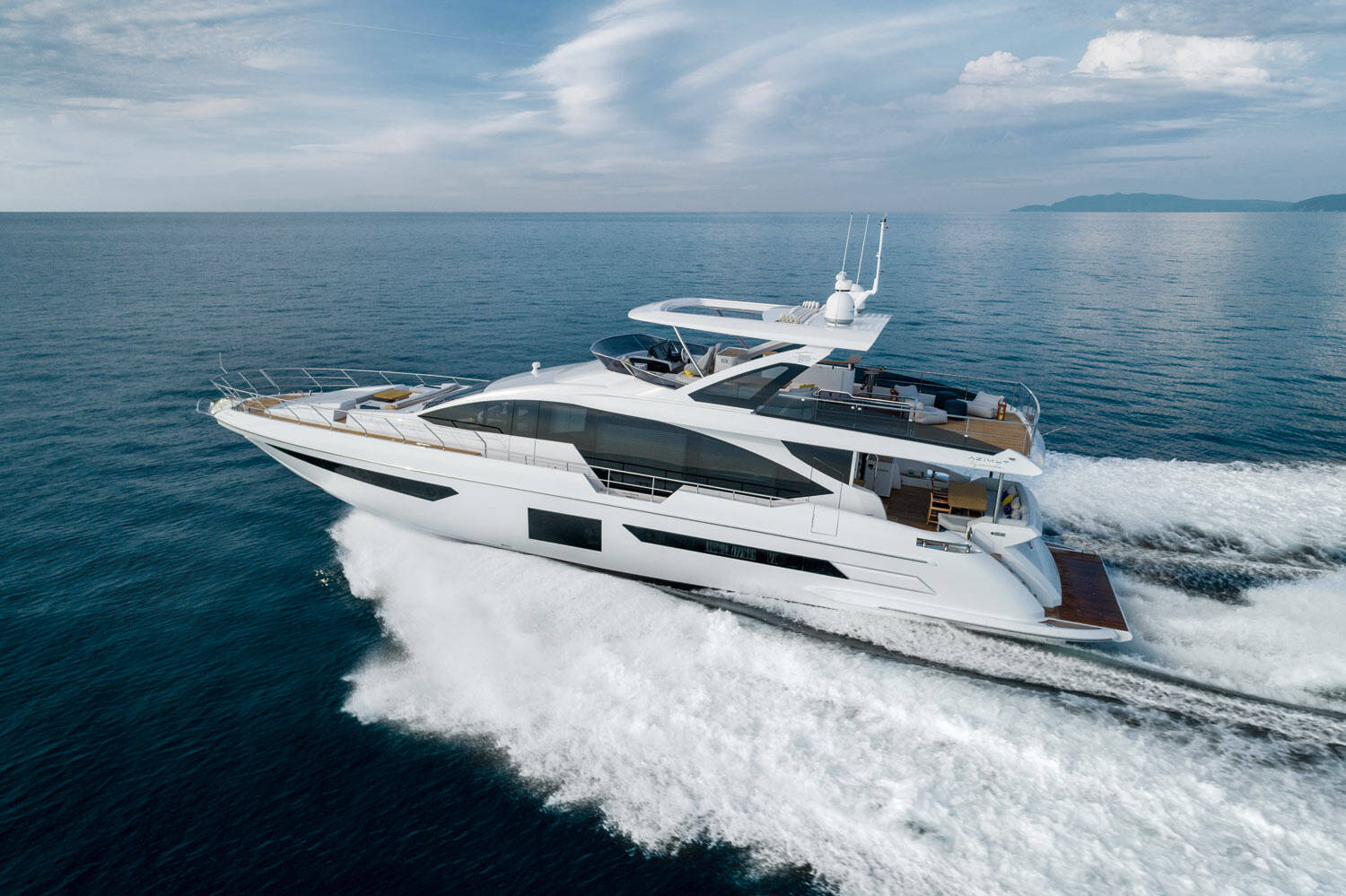

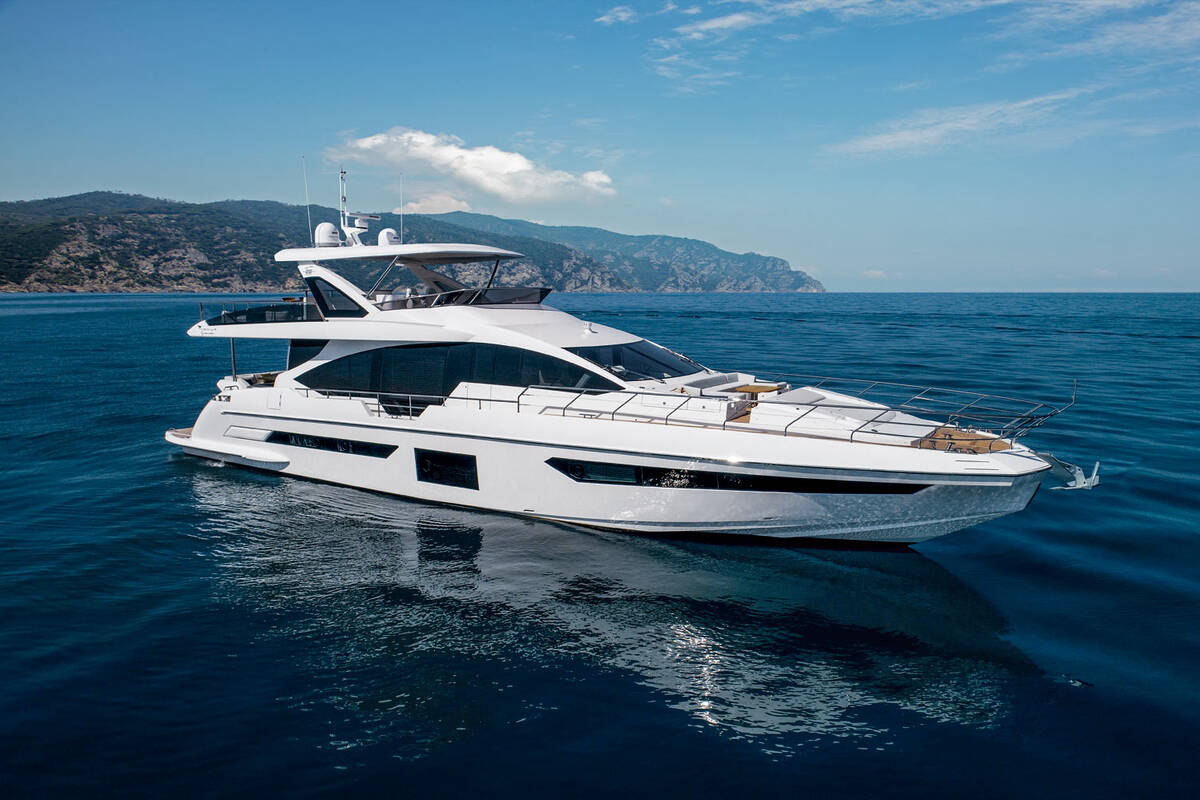

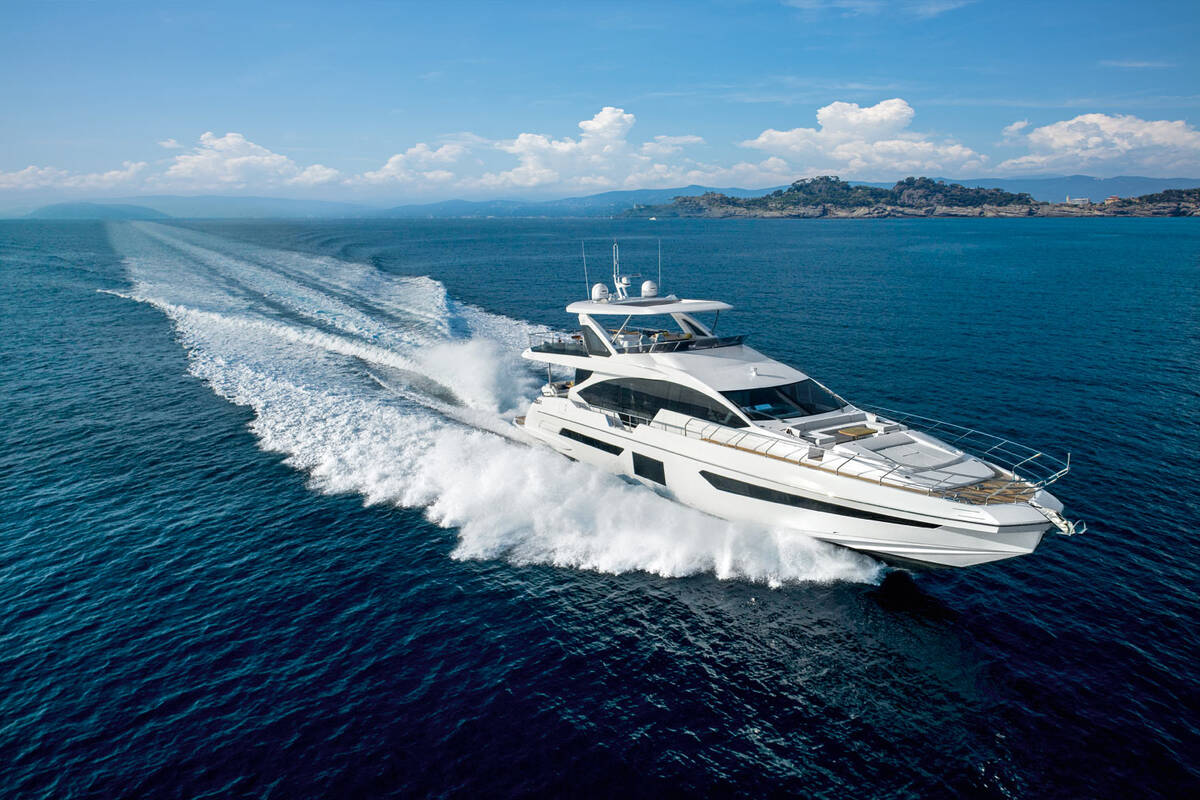

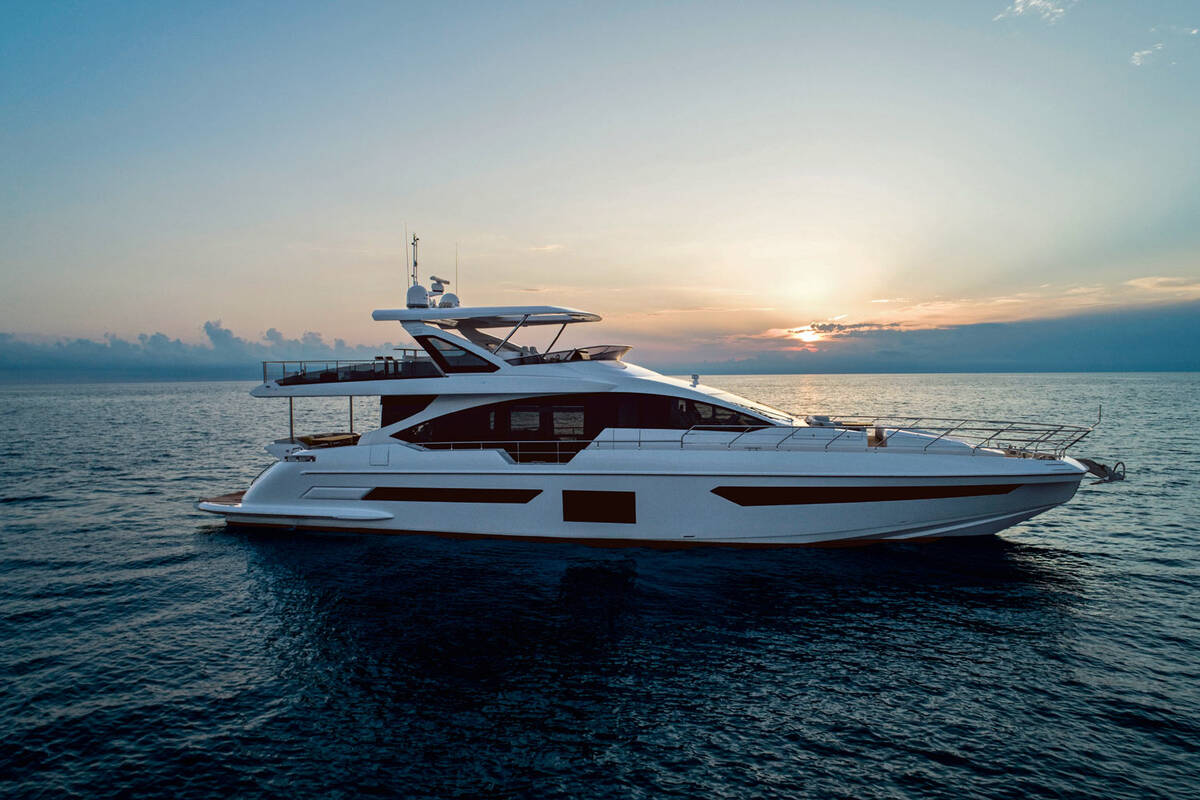

Azimut Grande 25 METRI

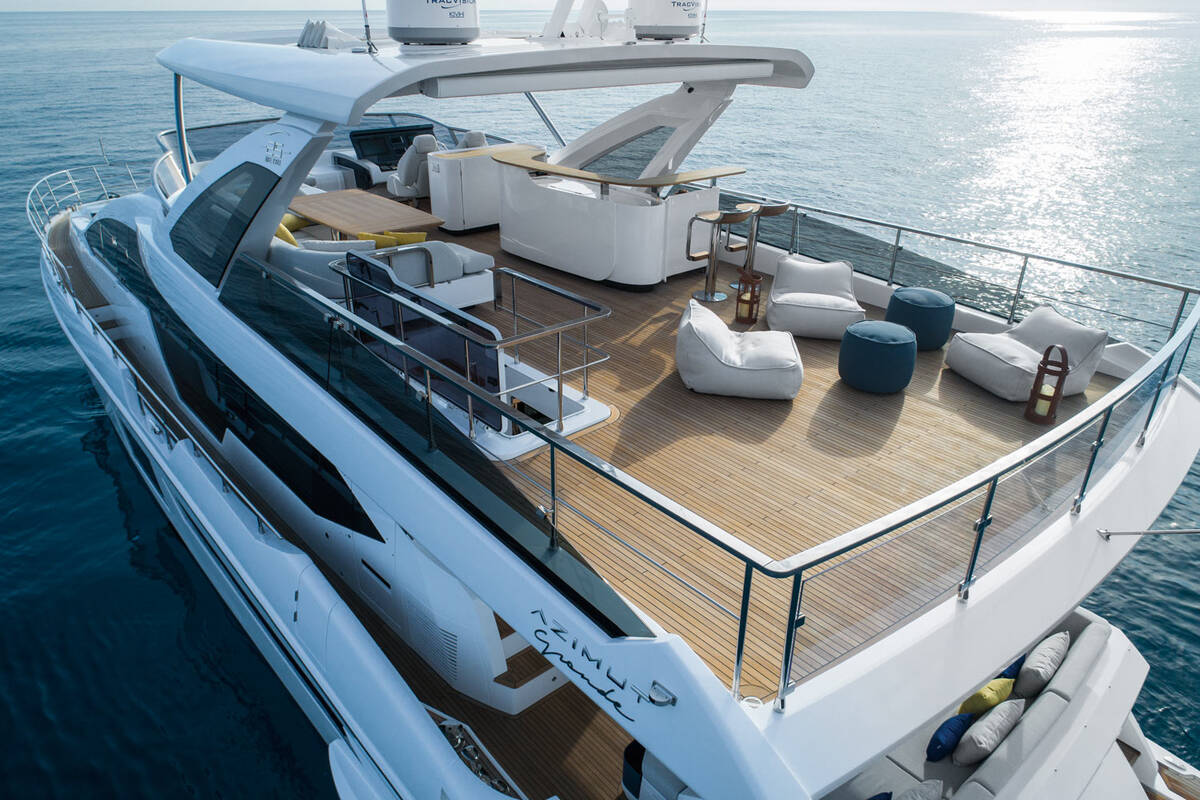

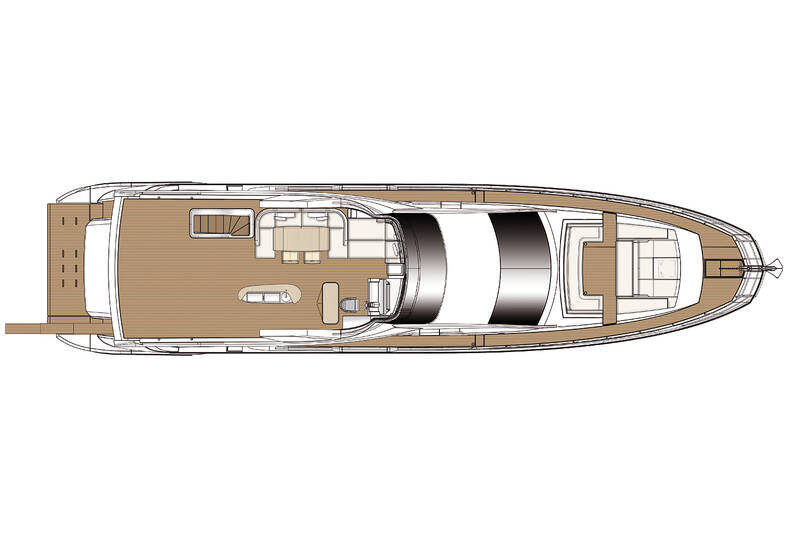

• Access to flybridge via external stairway, located on port side and equipped with stainless steel handrail
• External GRP stairway
• Teak-covered steps leading to flybridge
• Flybridge GRP flooring with anti-slip
• Plexiglas flybridge screen with stainless steel frame
• Radar arch complete with:
• - glass inserts on external sides
• - “25M” logo on radar arch and “Grande” wording on deckhouse tails
• - two watertight speakers for external use
• - LED technology spotlights
• - Flat support bases for navigation systems
• Fore port side sunbed area, composed of a GRP base with removable cushions and lockers built inside
• Dining area composed of:
• - one C-shaped sofa (consisting of two L-shaped modules placed side by side) with backrest, removable cushions for outdoors, lockers incorporated into GRP module, and LED strip lighting on the base
• - Fixed table, in front of fore sofa, with teak top
• - storage cabinet with LED strip lighting on the base
• Flybridge bar cabinet, with:
• - LED strip lighting on the base
• - sink built into cabinet with retractable water tap
• - Waste collection hatch
• - Fridge
• -Barbecue with stainless steel protective cover for cabinet door and safety off switch.
• - Panels and cabinet top for covering the household appliances when not used. It is also possible to install: Icemaker

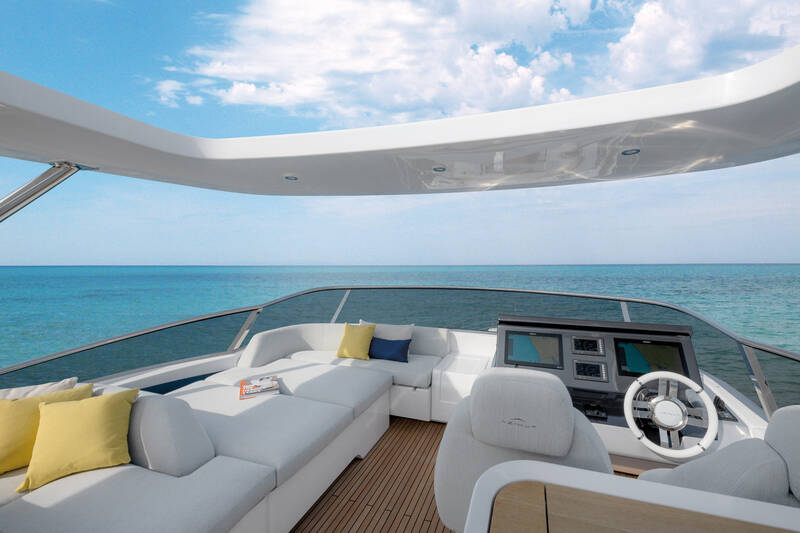

• Control station: seating area on starboard side
• Flybridge dashboard consisting of:
• - MAN 7" display for engines
• - Electronic navigation instruments version BRONZE and Raymarine monitoring
• - Engine controls
• - Steering wheel
• - Communication systems (VHF)
• - Bow thruster controls
• - Audible alarm controls
• - Trim tab controls (intruder)
• - 12 V socket
• Scuppers with stainless steel grids and Azimut logo
• Light mast
• Compliant navigation lights
• Manual searchlight
• Anti-slip floor

• 110 kg anchor
• 100-meter anchor chain, diameter 14 mm
• Stainless steel bow roller
• One electric vertical anchor winch, 3500 W, reversible, fixed to a stainless steel plate and recessed in relation to the main deck level
• Chain locker accessible through hatch, with internal lighting and drainage
• Fender compartment built in the fore peak
• Chain washing system
• Stainless steel anchor line anti-rubbing protection
• Two roller-type chocks
• Two stainless steel T-head cleats
• Bow hatch (emergency exit from VIP cabin)

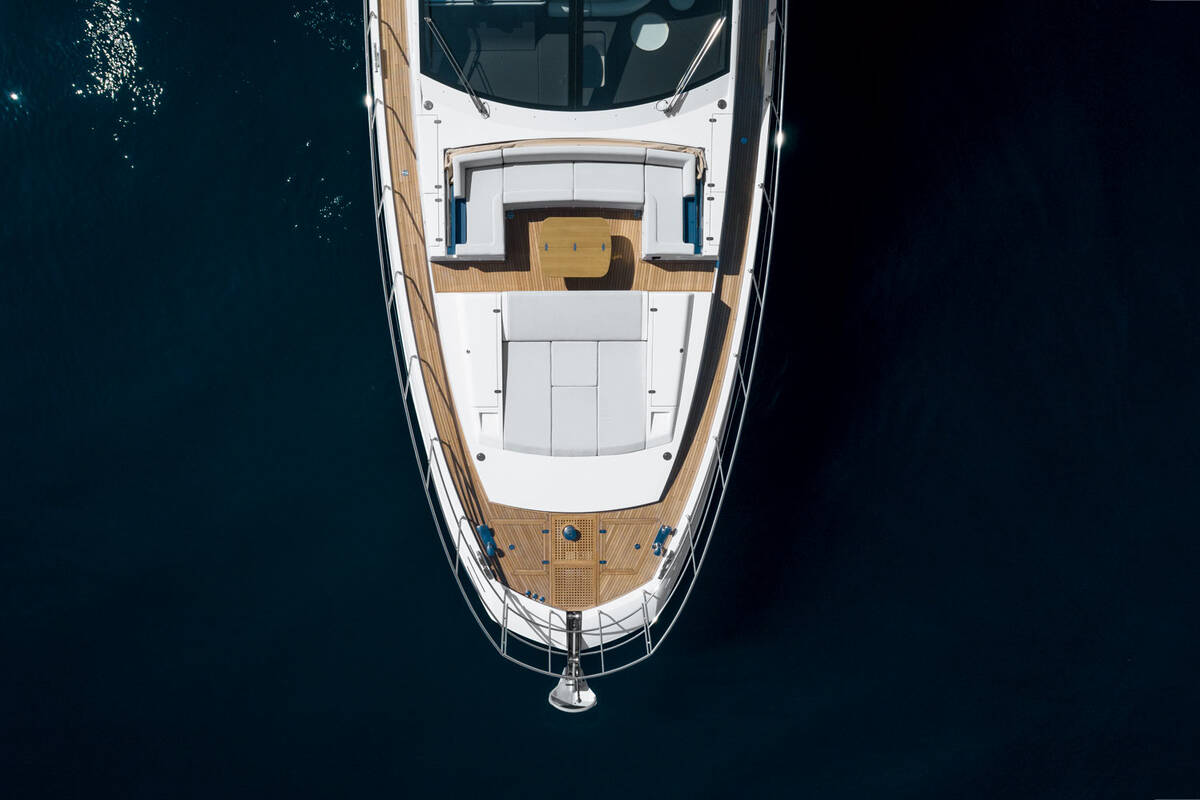

• Fore sunbed area with removable cushions in fabric for outdoors
• Two side lockers, one per side, located on the sides of the sunbed area
• Sofa built in the GRP structure, with backrest, equipped with three lockers and removable cushions for external use
• Protective cover for external cushions
• LED technology courtesy lighting
• Two watertight loudspeakers for external use placed at the base of the fore sofa
• Two storage compartments in CORIAN, one per side, built in the seating area, placed one on port side and one on starboard side
• Two electric windscreen wipers for cleaning the windscreen
• Windscreen shades
• Teak floor
• Scuppers with stainless steel grating and
• Azimut logo

• Six side lockers (three on each side) in deckhouse bow area
• Two watertight side sliding doors, electrically controlled, for access from outside to the galley on starboard side and to the wheelhouse on port side
• Refueling plugs on both walk arounds
• Fresh water caps on starboard walk around (inside starboard cabin wardrobe)
• Black water outlet on port walk around (inside port cabin wardrobe)
• GRP side boarding gates
• Teak floor
• Pulpit with handrail O 40 mm, thickness 2 mm; and stanchion O 30 mm LED technology courtesy lighting
• Rubber rub-rail with stainless steel insert along hull sides and side protections

• Two accesses (one per side) with stainless steel gate
• Two stainless steel cleats mounted on GRP mooring stations
• Two electric vertical mooring winches, power 2300 W
• Two stainless steel chocks with rollers and aesthetic fairing in GRP

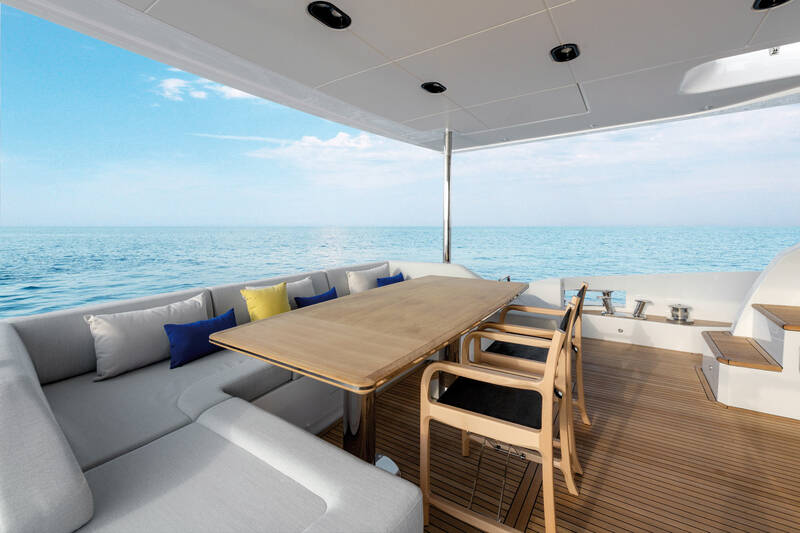

• One C-shaped sofa (in dining area) with backrest, in central position, built in the deck, equipped with lockers and removable cushions
• Two storage compartments in CORIAN, one per side, built in the seating area, placed one on port side and one on starboard side
• Fix teak table (in dining area) with fixed bases
• Saloon access door made in steel with tempered glass. It is composed of three flat panels: two sliding and one fixed, opening towards starboard side. The sliding panels are provided with intermediate stops allowing partial opening of the door
• Protective cover for external cushions
• Scuppers with stainless steel grating and Azimut logo
• Cockpit bar cabinet, positioned towards starboard side, provided with:
• - audio console
• - sink built into cabinet with retractable water tap
• - drawer-type fridge
• - Cover top
• It is also possible to add:
• - Icemaker
• Teak floor
• Two stainless steel flybridge support poles, O 90 mm
• Gangway extending system, three positions, maximum capacity 150 kg, operated through 24 V DC electro-hydraulic control unit
• Cockpit ceiling spotlights with LED technology
• LED courtesy lighting on flybridge ladder steps
• Two waterproof speakers for external use, located on ceiling

• GRP lifting platform mounted on stainless steel stiffening frame
• Teak flooring and slots for fast water drainage
• Cockpit external access steps in GRP with steps covered in teak
• Rub-rail on lifting platform, in rubber with stainless steel inserts
• External shower head, on starboard side
• Two fresh water shore intakes positioned on port and starboard sides
• Two stainless steel handrails O 40 mm, thickness 2 mm
• LED courtesy lights
• Extractable manual swimming ladder positioned on starboard side
• Fixed stainless steel ladder for access to/from the stern platform when lowered

• Garage access hatch in composite material
• GARAGE DIMENSIONS:
• - maximum length: 4145 mm
• - beam: 3130 mm
• - maximum length 1600 mm (total volume: 10 m3)
• HYPOTHETICAL GARAGE TENDER: Pirelli J39
• HYPOTHETICAL FLYBRIDGE TENDER: Pirelli J29

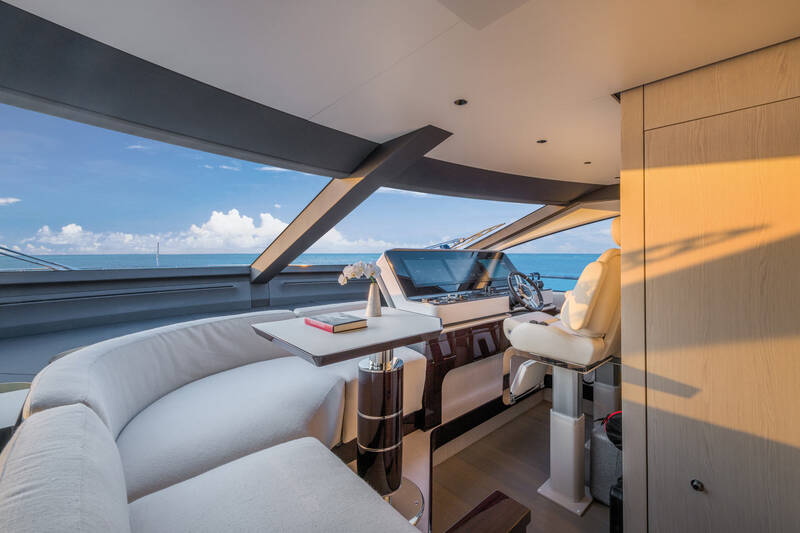

• The wheelhouse includes:
• - Helm seat with electric position adjustment complete with footrest and storage pocket on starboard side
• - Leather-covered steering wheel
• - Carpeted floor
• - Leather-coated ceilings, mullions, and window carters
• - LED technology lighting
• Internal dashboard consisting of:
• - MAN 7” display for engines Electronic navigation instruments version BRONZE and monitoring
• - Engine throttles
• - Communication systems (VHF)
• - Magnetic compass
• - Bow thruster controls
• - Audible alarm controls
• - 12 V socket
• Two adjustable air conditioning outlets
• Emergency panel
• L-shape two-seater sofa, on port side of the wheelhouse

• Located on starboard side, accessible through door aft of the wheelhouse.
• The galley is composed of:
• Fridge (419 l) + Freezer (247 l)
• Stainless steel sink with faucets
• Extractor hood
• Oven
• Induction hobs
• Four silicone pot holders
• Wooden floor
• Composite material worktop
• Storage wall units
• LED technology spotlights
• Sockets

• Located on port side, aft of the lower deck access ladder, composed of:
• Vitrified steel washbasin with lacquered top
• Faucets
• TECMA toilet
• Air suction fan
• Mirror
• Flooring in quartzite (from serial no. 023)
• Windows with built-in portlights and
• Venetian blind

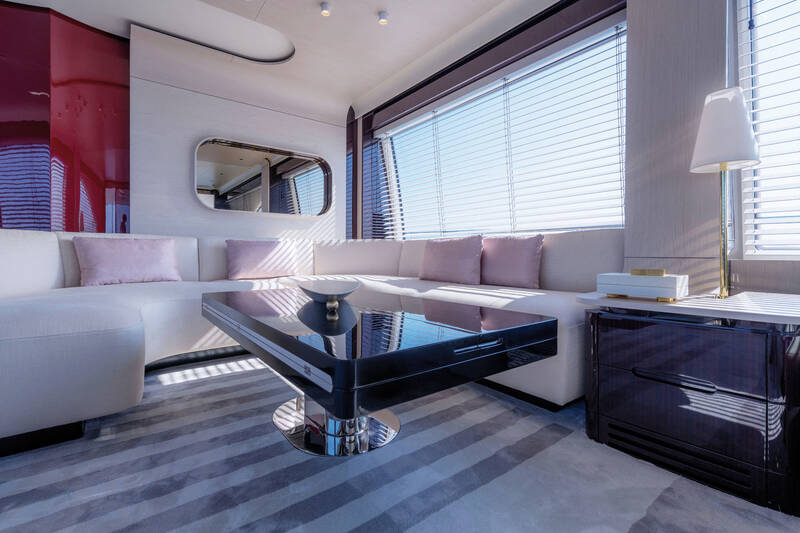

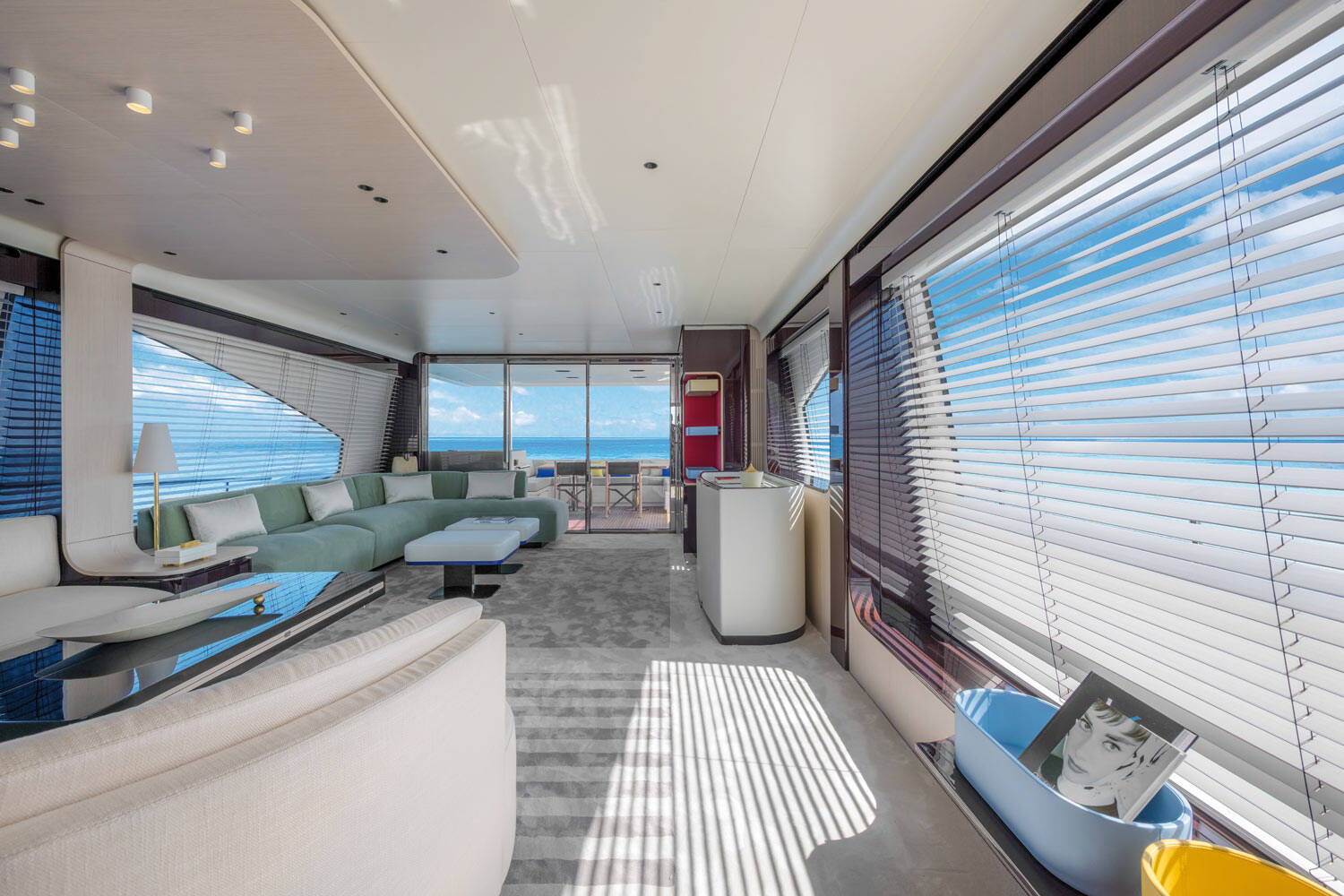

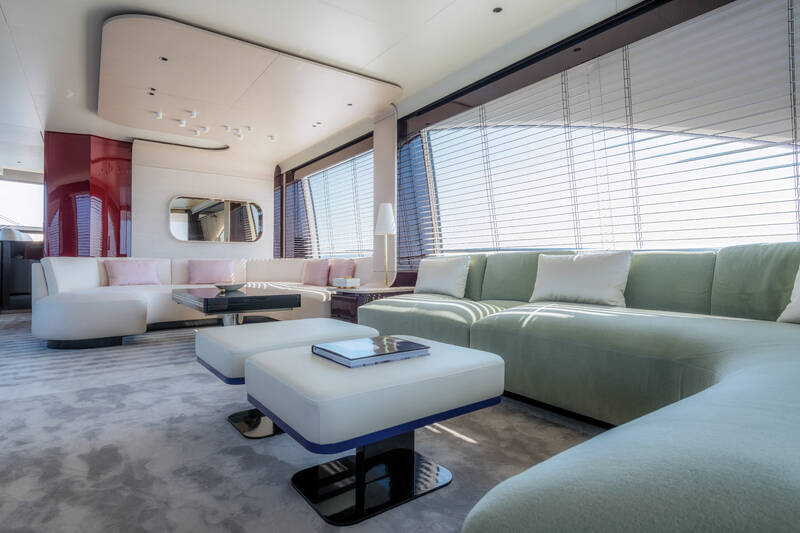

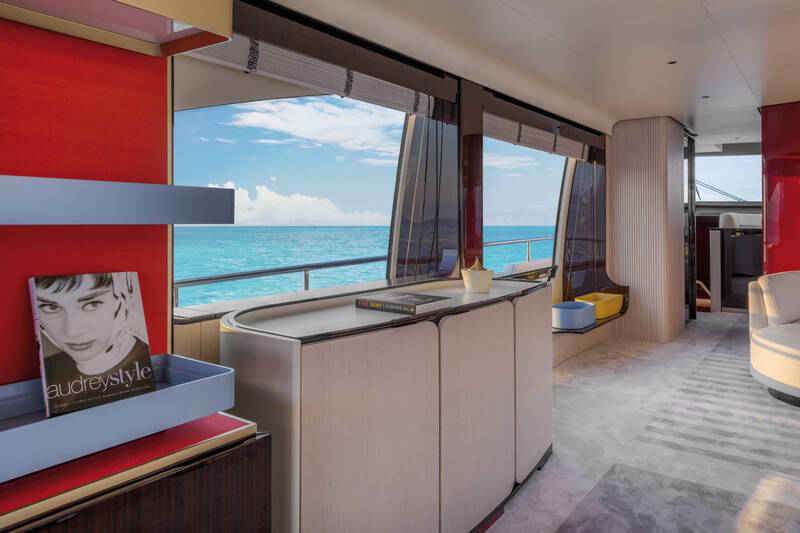

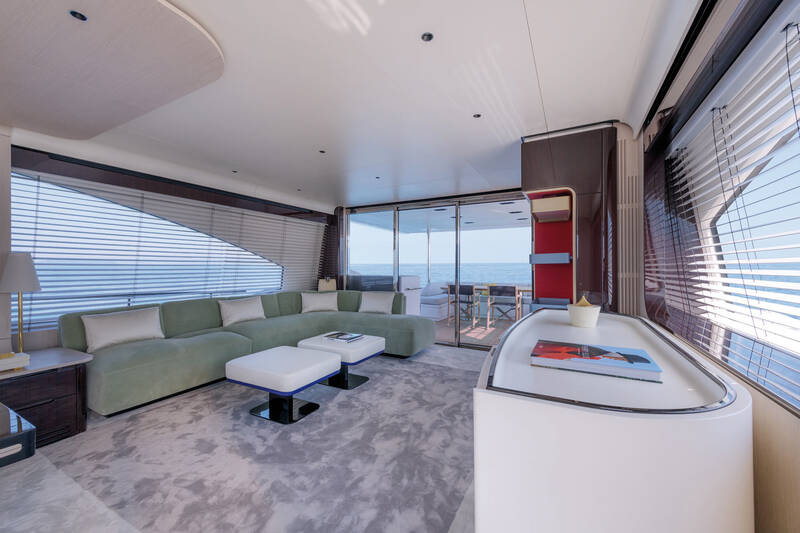

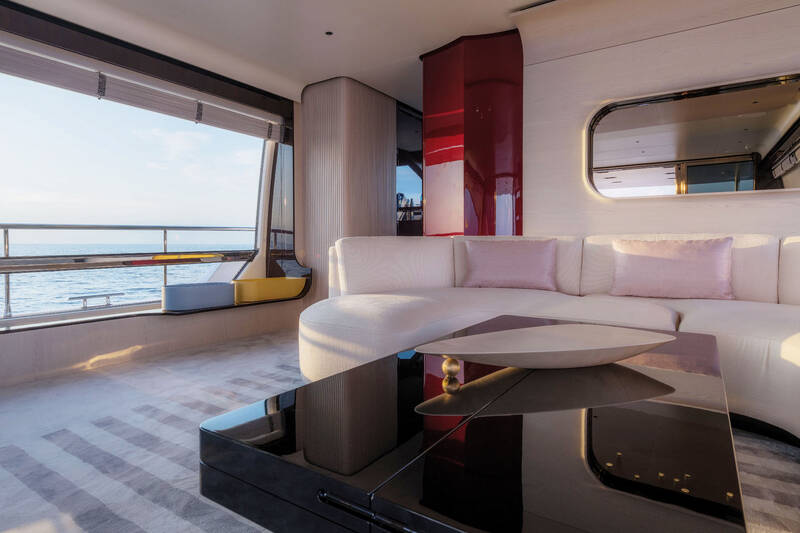

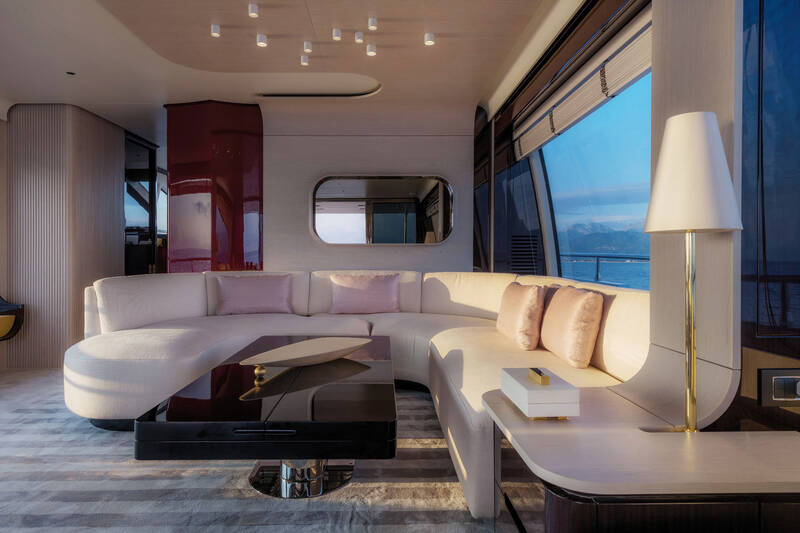

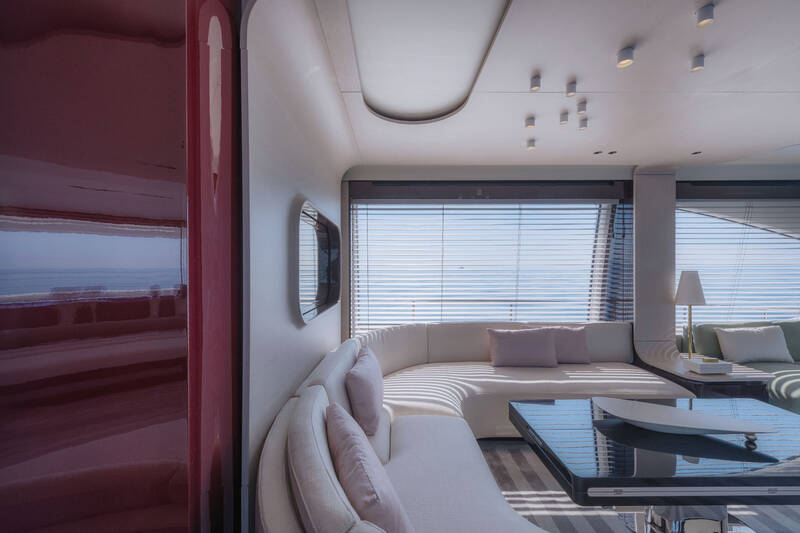

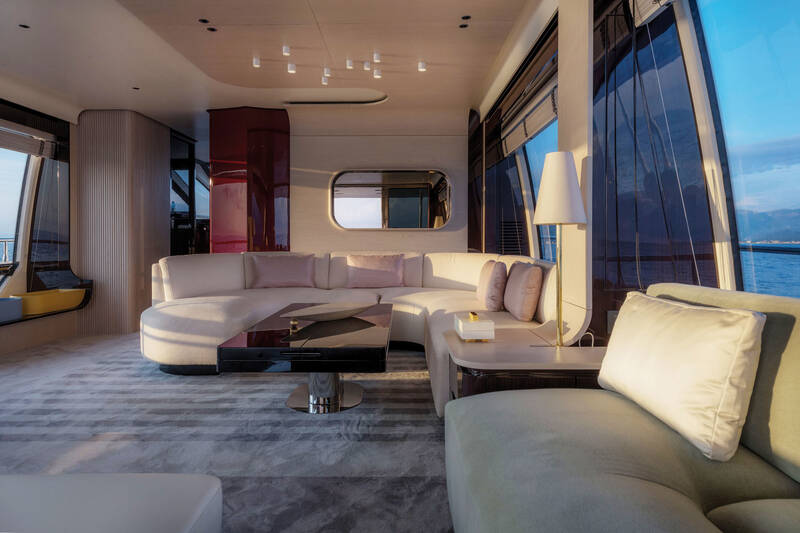

• It is composed of:
• One 5-seater sofa, starboard side
• 2-seater sofa, placed transversally aft of the dining table
• Table
• Carpet floor in the saloon area
• Ceiling-mounted recessed spotlights with dimmer and LED technology
• Lighting with dedicated spotlights in dining area
• Sockets
• TV lift system, port side
• 40" TV
• Two ceiling-mounted recessed speakers

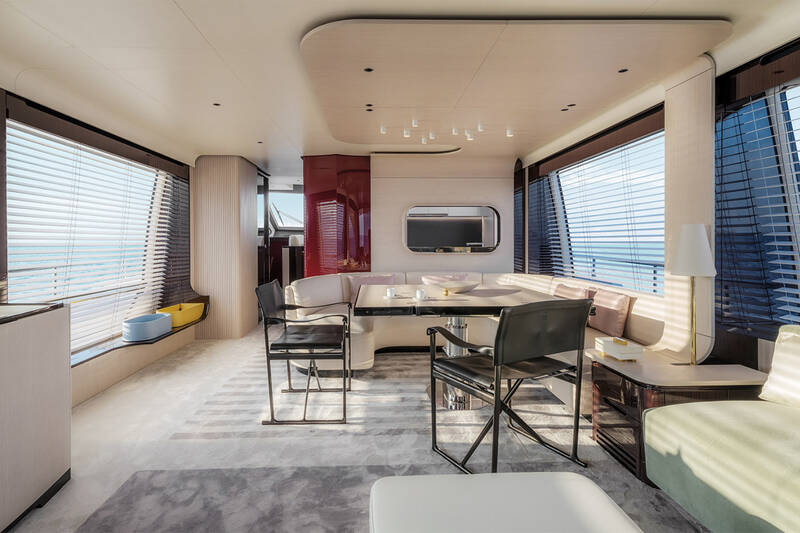

• Dining area with full-height panoramic window on port and starboard side
• Dining table
• Eight chairs
• Side venetian blinds
• Saloon door curtain in fabric
• Storage cabinet on port side
• Column storage cabinet, at boat entrance, port side
• Lacquered and wood ceiling
• Serving hatch with electrically controlled closure panel and "bronze mirror" finishing

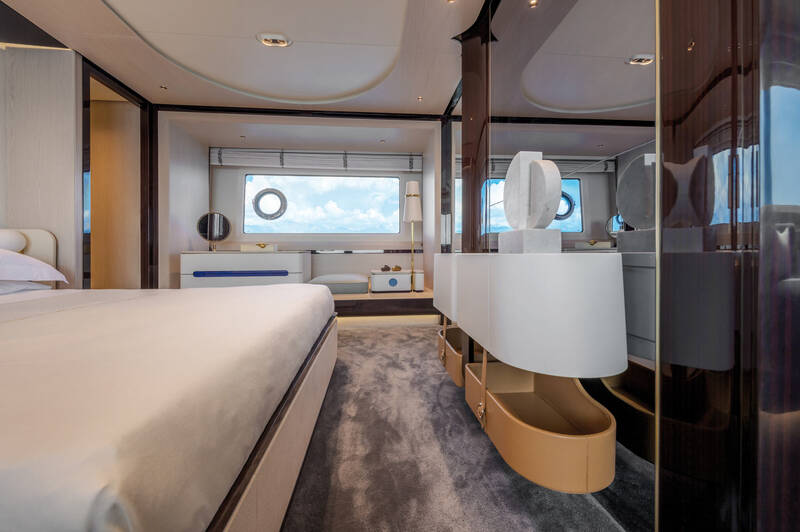

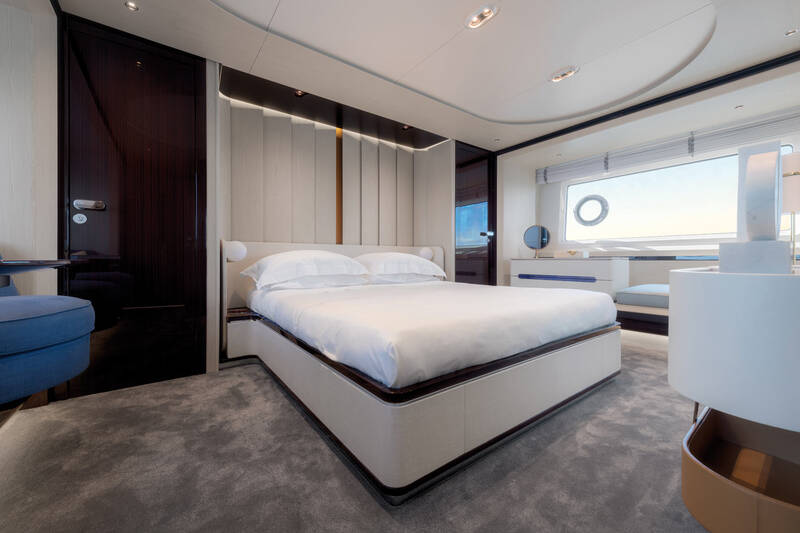

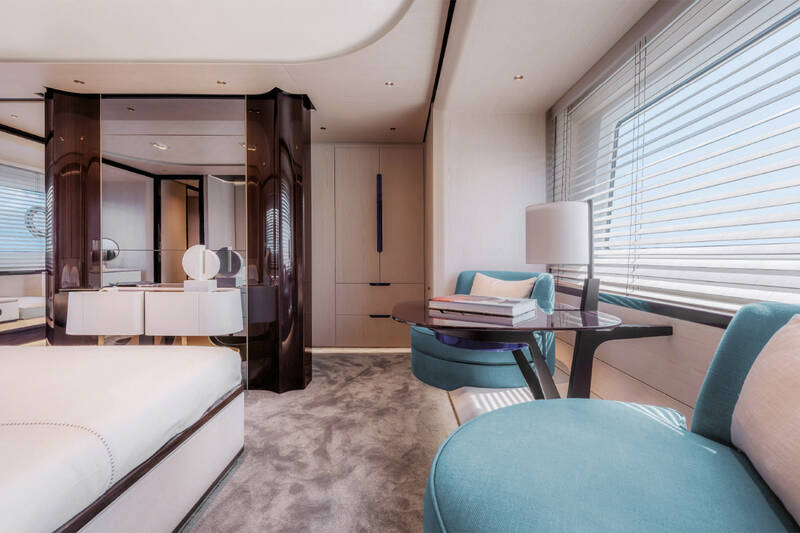

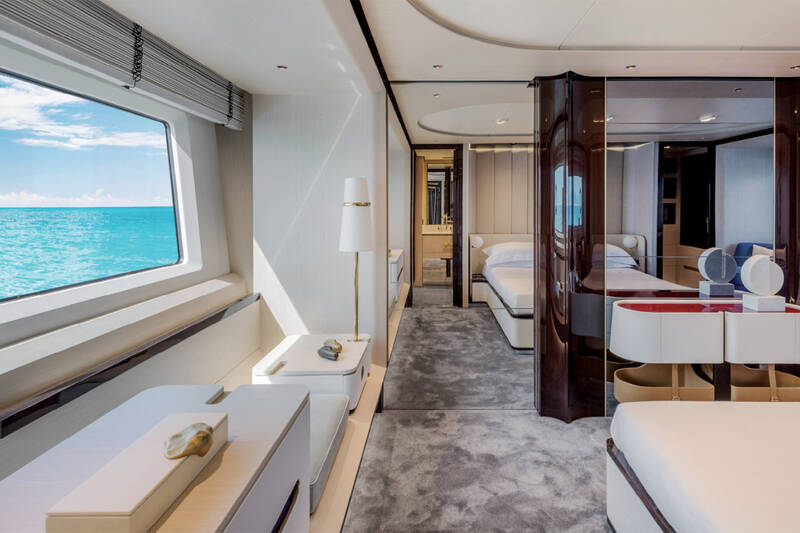

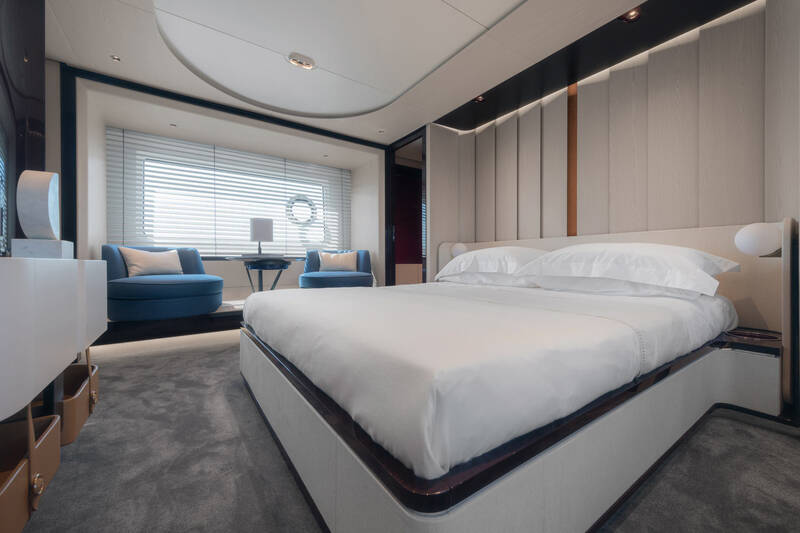

• The full-beam owner's cabin is composed of:

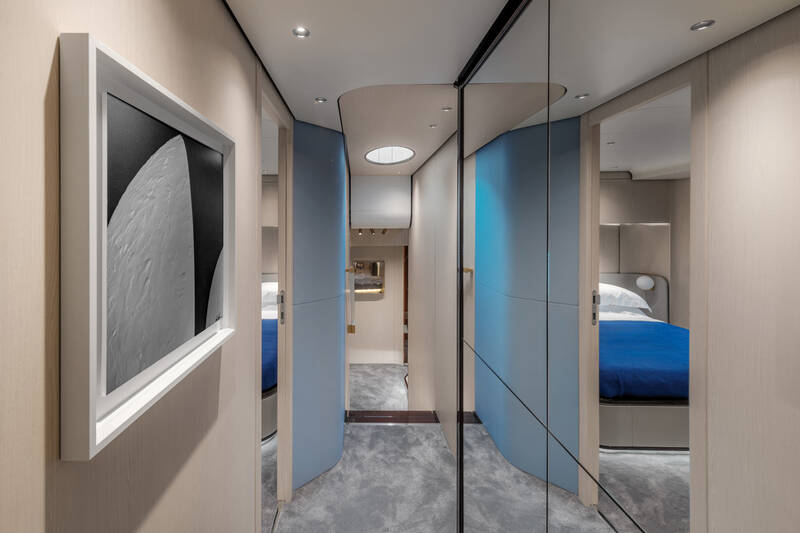

• Side entry to cabin via small corridor
• Walk-in wardrobe with wardrobes equipped with hanger bar, internal lighting, chest of drawers, and full-height mirror
• Double bed at the center of the yacht, with foldaway bed base and locker
• Headboard
• Mattress, pillows and bedspread
• Two furnished bedside tables
• Two reading lights
• Fix side windows on each side of the cabin with built-in portlight
• Venetian blinds
• Chest of drawers, to the left of the owner's bed
• Two armchairs to the right of the owner's bed
• 40" TV
• Audio system with two speakers on ceiling
• Main lighting with dimmer, LED technology
• LED technology courtesy lighting
• Direct access to head, through passage on port side
• Full length mirror
• Wood-upholstered bulwarks
• Lacquered and wood ceiling
• Carpeted floor
• Sockets
• Wardrobe with drawers, located at cabin entrance

• Located aft of the owner's cabin.
• It is composed of:
• independent access from owner's cabin
• Shower compartment:
• - with glass access door
• - shower walls covered in quartzite (from serial no. 023)
• - removable grating in natural iroko
• - thermostatic mixer
• - hand-held and ceiling-mounted shower head
• - soap holders
• - watertight spotlights
• - suction grating
• Double washbasin with top in quartzite (from serial no. 023)
• Mirrors
• Storage drawer under the washbasin
• Side wall units with storage compartment
• Compartment separated by a sliding door on port side, for toilet
• Lighting with LED ceiling light above washbasins
• Direct lighting with cockpit ceiling-mounted recessed spotlights with LED technology
• One openable portlight
• Venetian blind
• Flooring in quartzite (from serial no. 023)
• Sockets
• Head accessories

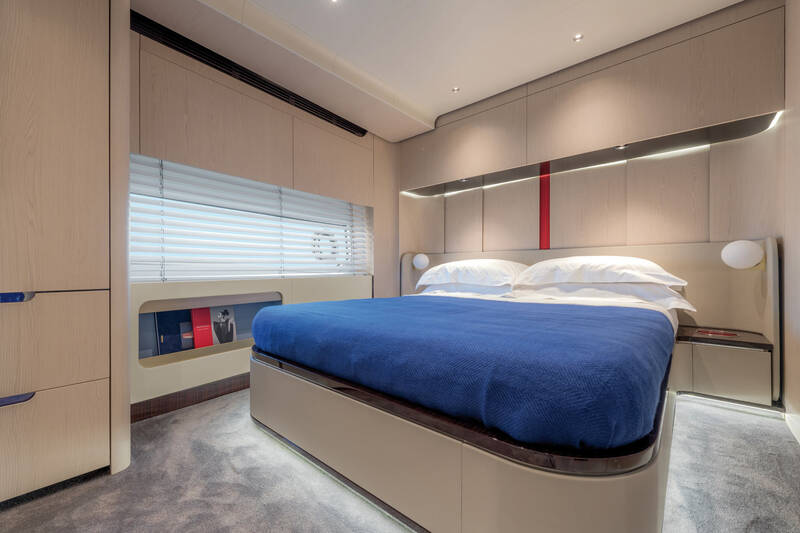

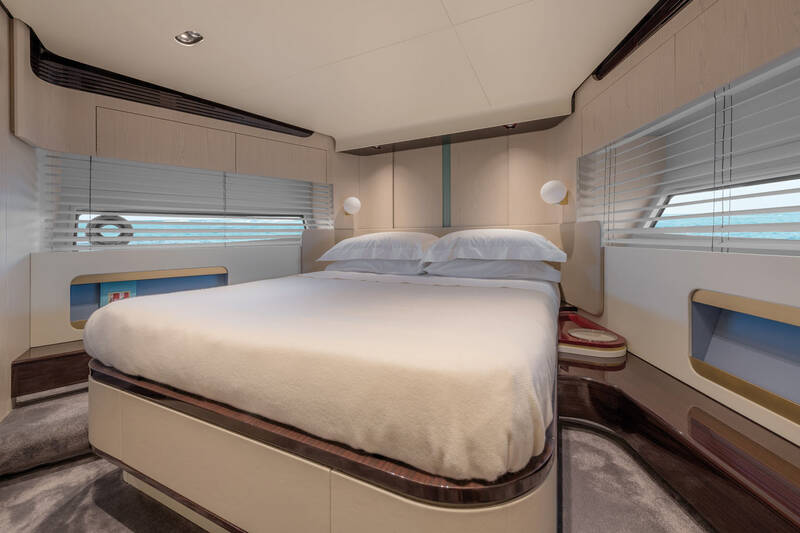

• Longitudinal foldaway double bed with locker underneath
• Headboard
• Mattress, pillows and bedspread
• Two reading lights
• Two bedside tables with drawer
• Wardrobe with hanger bar and shelves
• Lacquered ceiling
• Fabric and wooden bulwark upholstery
• Panoramic fixed window with built-in portlight
• Venetian blind
• Carpeted floor
• LED technology lighting
• Headboard light
• Direct access to head
• 24" TV
• Audio system with two speakers on ceiling
• Sockets

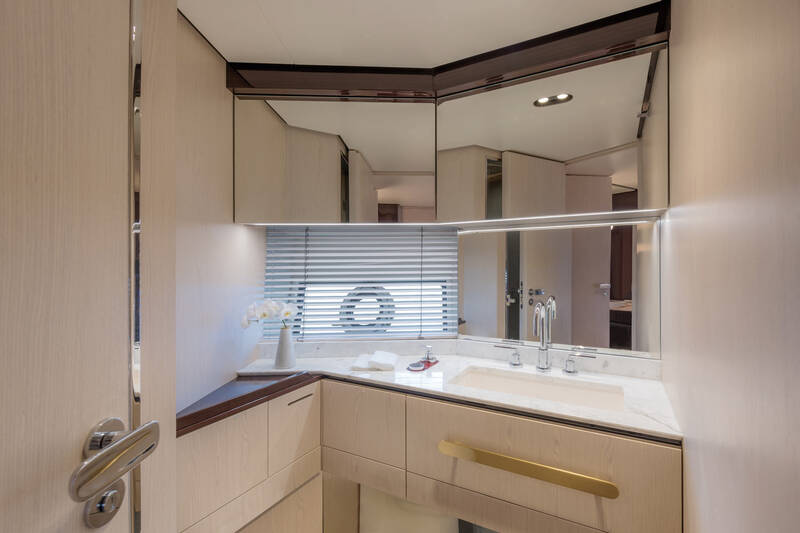

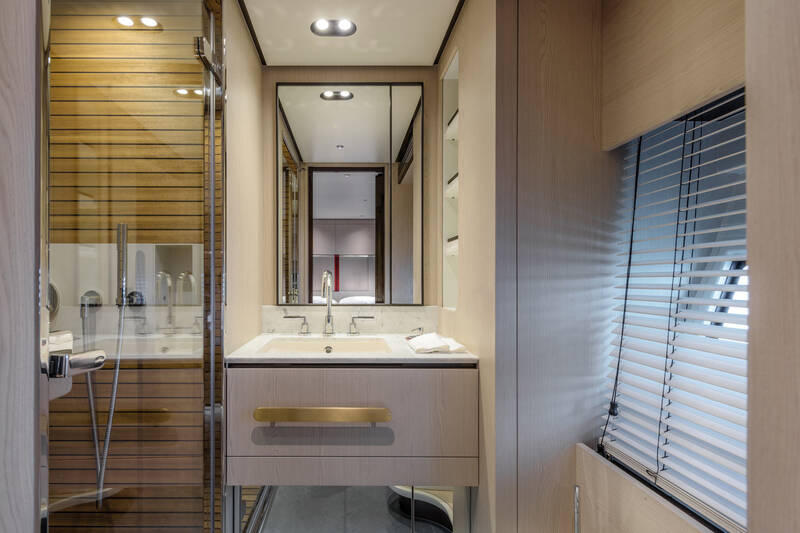

• Washbasin with top in quartzite (from serial no. 023)
• Faucets
• Mirrored panels above washbasin
• Toilet
• Shower enclosure with:
• - glass door
• - grating in natural iroko
• - thermostatic mixer
• - hand-held shower head
• - recessed ceiling-mounted shower head
• - soap holder
• LED lighting
• One openable round portlight
• Venetian blind
• Iroko flooring
• Head air extraction system
• Head accessories
• Socket

• Two fixed single beds
• Mattresses, pillows, bedspreads
• Two reading lights
• One bedside table with drawer
• Wardrobe with hanger bar and shelves
• Wall units on the bulwark
• Lacquered ceilings
• Fabric and wooden bulwark upholstery
• Panoramic fixed window with built-in portlight Venetian blind
• Carpeted floor
• LED technology lighting
• Headboard light
• Direct access to head
• 24" TV
• Audio system with speakers on ceiling
• Sockets

• Washbasin with top in quartzite (from serial no. 023)
• Faucets
• Mirrored panels above washbasin
• Toilet
• Shower enclosure with:
• - glass door
• - grating in natural iroko
• - thermostatic mixer
• - hand-held shower head
• - recessed ceiling-mounted shower head
• - soap holders
• LED lighting
• One openable round portlight
• Venetian blind
• Iroko flooring
• Head air extraction system
• Head accessories
• Socket

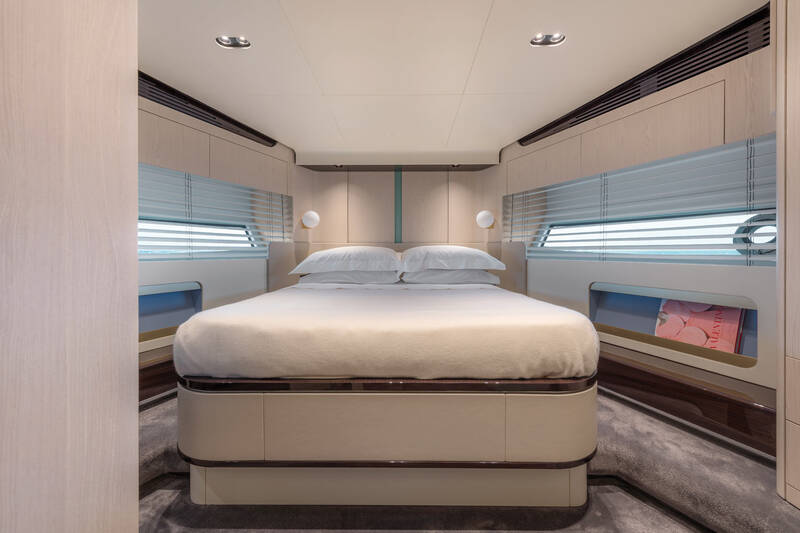

• Located in the fore area of the lower deck, it is composed of:
• Double bed at the center of the yacht, with foldaway bed base and locker below
• Headboard
• Mattress, pillows and bedspread
• Two reading lights
• Wardrobe on starboard side with hanger bar, internal lighting, and chest of drawers
• Two wall units with storage above side panoramic windows
• Lighting with recessed LED spotlights
• Two wall lights on headboard
• Two fixed panoramic windows
• Two openable round portlights built-in the panoramic windows
• Wooden Venetian blinds
• Lacquered ceiling
• Fabric and wooden bulwark upholstery
• Carpeted floor
• 32" TV
• Audio system with two speakers on ceiling
• Sockets
• Direct access to head

• Washbasin with top and riser in quartzite (from serial no. 023)
• Faucets
• Cupboards above washbasin with mirror doors
• Toilet
• Shower enclosure with:
• - glass door
• - removable grating in iroko
• - thermostatic mixer
• - hand-held shower head
• - recessed ceiling-mounted shower head
• - soap holder
• - watertight spotlight
• LED lighting
• One openable round portlight
• Venetian blind
• Iroko flooring
• Head air extraction system
• Head accessories
• Socket

• The crew area is accessible through a side door located on port side walk around. The crew area is divided into:
• Commander's cabin on starboard side, with single bed
• Crew cabin on starboard side, fore, with single bed and possibility of adding a second bed
• Both cabins have:
• Mattress, pillows and bedspread
• Wardrobe
• Laminated floor
• LED lighting
• Socket
• Air conditioning system control panel
• The area shared by the two cabins includes:
• Dinette
• 24" TV
• Audio system with two speakers on ceiling
• Storage compartment
• Storage wall units

• The crew area is equipped with head with shower. It is composed of:
• One washbasin
• One faucet
• Wall unit with mirror
• WC
• Shower enclosure with:
• - grating
• - shower head with flexible pipe
• - LED lighting
• LED technology lighting
• Socket
• Head accessories

• Shore-powered power supply
• DC electric panel: Installed on fore bulkhead of the engine room
• AC electric panel: Installed on fore bulkhead of the engine room
• AUXILIARY electric panels: Installed in the lobby
• Emergency control panel: Installed in the wheelhouse
• Battery cut-out/emergency/fire extinguishing system control panel: located in the cockpit
• Onboard voltages:
• - 230 V - 50 Hz AC
• - 24 V DC from battery set
• - 12 V DC from battery set and AC/DC voltage reducer

• Two single phase generators 20 kW / 230
• V AC - 50 Hz for EU system
• Soundproofing box
• Remote start up

• Two EU sockets 3P 50 A
• The AC power sources terminate on the main electric panel in the engine room, equipped with voltmeter and ammeter for the 230 V network. The power sources are protected by suitably sized fuses, and introduced into the network by means of remote control switches

Batteries

• Services: twelve, 90 Ah - 12 V DC
• Engines: six 90 Ah - 12 V DC
• Generator: one 90 Ah - 12 V DC
• Service battery charger / service backup (OPT): two Mastervolt 100 Ah - 24 V
• Engine start-up battery charger: one
• Mastervolt 30 Ah - 24 V
• Genset start up battery charger: one
• Mastervolt 10 Ah - 12 V

• 230 V AC sockets for main utility power supply, EU type
• USB sockets
• Internal lighting: 24 V LED-type with dimmer (saloon + owner 50 Hz) (saloon + owner + VIP + guests 60 Hz)
• External lighting: 24 V LED-type (dimmer OPT)

• Raymarine monitoring and supervision system BRONZE Package (STD version), it includes essentially:
• - Flybridge: 2 monitors mod. Axiom 16 Pro, 16”; p70 Rs (automatic pilot control)
• - Wheelhouse: 2 monitors mod. Axiom 16 Pro, 16”; 1 monitor Axiom 7, 7”
• - Crew: 1 monitor mod. Axiom 9, 9”
• - Radar, quantum model

• For STD equipment, see “flybridge dashboard equipment” and “internal dashboard equipment” paragraphs
• For a detailed list of alternative/additional equipment available, please refer to the Optionals price list

• Two 24 V electric pumps, automatically controlled (level switch) located in the engine room
• Two 24 V electric pumps, automatically controlled (level switch) located in the crew zone bilges
• One 24 V electric pump, automatically controlled (level switch) located in the lobby
• Two manual pumps connected in the engine room bilge and with controls in the cockpit with crossover valve
• One manual pump located in the crew zone with crossover valve
• One manual pump located in the double guest cabin, with suction forward of the tank
• Pumps operation indicator and high level alarms in the monitoring system
• Engine bilge emergency emptying through outlet connected to the crossover valve of the sea water cooling circuit of each engine
• Pumps operation indicator and high level alarms in the monitoring system

• FM200 42.50 kg extinguisher gas cylinder, with mechanical handle activation and remote activation, in the engine room
• Emergency engine/generator switch-off control in cockpit
• 24 V pump in engine room with delivery connected to two emergency hoses, one in the cockpit and one in the bow mooring area
• Alarm relay panel in crew cabin

• 7,200 liter GRP structural tank located on the keel (from engine room to owner's cabin)
• Seven inspection hatches, one of which provided with vents and one, located in the engine room, provided with suction lift for engines and generators
• Two refueling plugs, located on port and starboard walk arounds, midships
• Six vents connected on the centralized outlets, midships
• Two continuous-reading level sensors, located one in the crew area and one in the owner's area, connected with the Raymarine supervision system
• One battery-operated electronic diesel level sensor located in the hatch in the crew area
• Diesel check solenoid valves for engines and generators (with ignition switched on) with manual bypass
• Two RACOR double separator/settling filters (one per engine)
• Two RACOR single separator/settling filters (one per generator)

• One 1,100-liter tank, made in AISI 316 stainless steel, located under the dunnage near the VIP cabin
• One 24 V water pressure pump, located in the engine room, flow rate 55 l/min
• Resistive level indicator connected to the supervision system
• Water level sensor with pressure pump blocking if there is no water
• Two 80-liter water heater with 1200 W resistor, located under the dunnage near the VIP cabin
• System sectioning via valves and manifolds
• Hot and cold water lines in the heads, galley cockpit, and flybridge washbasin
• Toilet flushing with fresh water
• Embarking point on deck walk around, starboard side
• Shore sockets located under the second step of the platform access ladder
• Provision for 180 l/h desalination system

• TECMA toilet with macerator built into the base
• One 900-liter tank
• TECMA control panels with an indicator of the operating status, system drainage interlocking indicator if the tank is full
• Level gage integrated in the boat monitoring system
• Water level sensor
• Tank emptying via suction opening on walk around, port side
• Underwater discharge through dedicated line, with 24 V pump located in the engine room
• Two vents connected to centralized bulwark outlets
• Anti-odor filters located upstream of the bulwark vents

• One 900-liter tank
• Level gage and alarm integrated in the boat monitoring system
• Shower drainage pipes with drain-tap and removable filter to facilitate cleaning
• Water level sensor
• Water discharge through 24 V pump located in the engine room
• Five 10 liter grey water collection trays in cabin area
• Five 24 V pumps for emptying the trays
• Two vents connected to centralized bulwark outlets
• Anti-odor filters located upstream of the bulwark vents

• Engine cooling system: includes seawater intakes with filter and valve (one per engine)
• Generator cooling system: includes two seawater intakes with filter and valve (one per generator)
• Seawater intake for optional desalination system with filter and valve

• Engine room air intake through two axial fans, 2800 rpm, 24 V, 0.4 kW each
• Engine room air extraction through four axial fans, 2800 rpm, 24 V, 0.4 kW each
• Manual and automatic operation with relay on monitoring system and engine room temperature measuring
• Two water separators on intakes (one per part)

• Steering system: hydraulic and servoassisted
• Electric interceptor system
• Smoke and heat sensors for engine room zone
• Engine gas exhaust system:
• - "damp" gas exhaust with cooling water injection, with thermally insulated stainless steel manifolds and GRP structural mufflers
• - submerged gas exhaust vent windows and minimum bypass on hull sides
• - acoustic and visual alarm for high exhaust gas temperature on the monitoring system
• Audio/video system with:
• - TV in main spaces and cabins: Saloon, owner, VIP, guest with double bed and guest with twin beds, crew dinette
• - Fusion audio system in main internal spaces: Saloon, owner, VIP, guest with double bed and guest with twin beds, crew dinette
• - Audio system in main external spaces: cockpit, flybridge, bow

• One refrigerating unit with inverter, 144,000 BTU/h located in the engine room
• One seawater pump with relevant intake and filter
• The system is composed of 15 fan coils arranged as follows:
• - one in crew dinette
• - one in crew cabin
• - one in commander's cabin
• - two in owner's cabin
• - one in guest cabin with double bed
• - one in guest cabin with single beds
• - one in VIP cabin
• - four in saloon
• - one in galley
• - two in wheelhouse
• Each area has its own independent control panel

• One telescopic boat hook
• Six 16 m mooring lines
• Fender lines: 24 m
• One aluminum telescopic ladder
• One anchor chain stopper
• Eight fenders
• eight black fender covers
• One Owner's manual
• One AZIMUT document folder
• One wooden boat model
• One AZIMUT warranty service booklet
• One set of stainless steel cutlery
• One set of porcelain plates
• One set of glasses
• One set of stainless steel pots and pans
• Six sets of towels with logo
• Four floating keyrings
• Two bags with logo for storing the manuals
• One remote control holder with logo
• Two shower pipe storage bag
• One stainless steel scheduled maintenance kit
• One pin wrench for locking stainless steel pins
